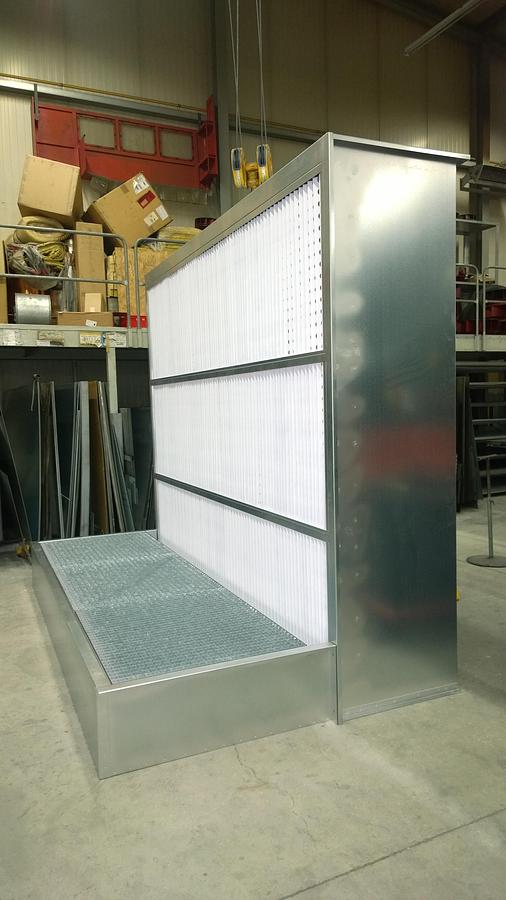

Dry spray wall with tank front

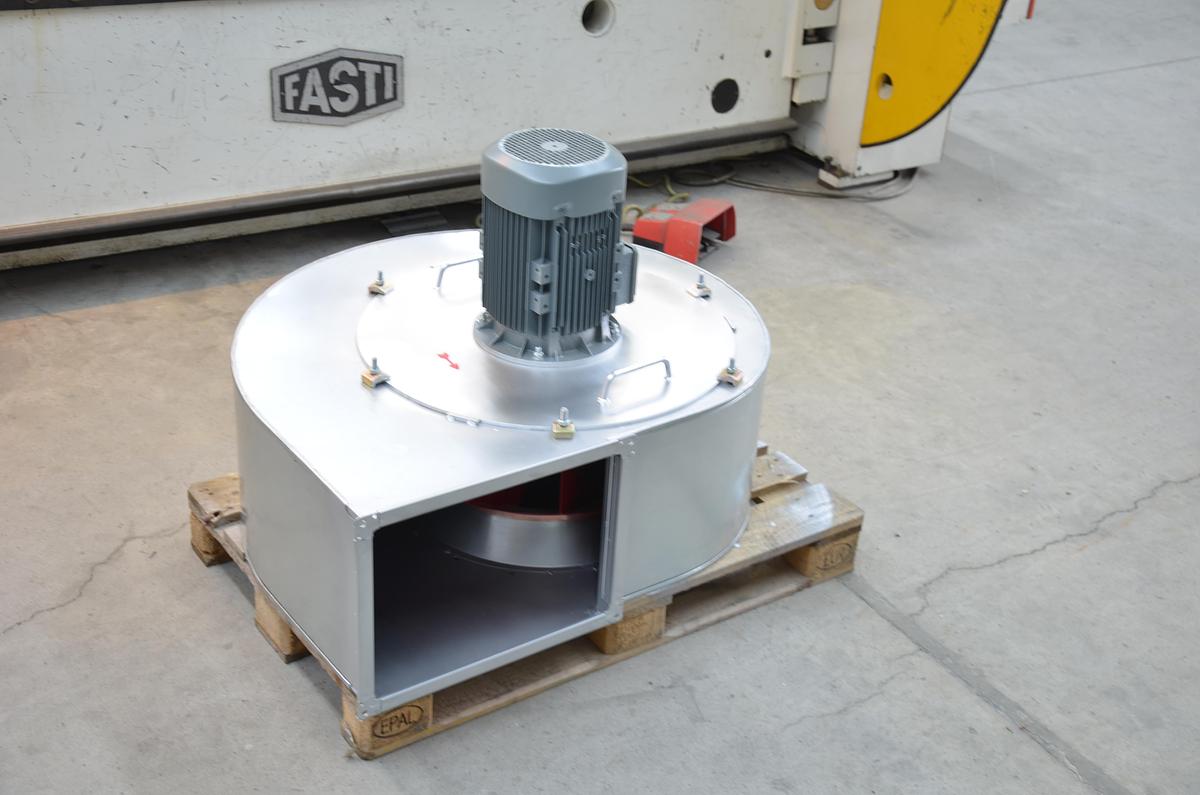

TW30/25-fold carton with grid-rusted bath front via folding carton prefilter and downstream filter mat Width: approx. 2,930 mm (outer approx. 3,040) Total height: approx. 2,465 mm (+ fan) Depth: approx. 750 mm (+ fan overhang) Volume flow 13,500 q/hr Exhaust pipe 560 - 630 mm Bath front depth: approx. 1,000 mm Bath front height: approx. 350 mm consists of: - housing in sheet metal construction, with filter intake frame - initial filter standard filling - bath front with grid rack supports and grid rusting (Load design: max. 100 kg on the entire surface) - fan ZR50 - NO EX only suitable for water-based paints. (E-motor: 3.0 kW, 400V, 50 Hz and blowing outward Direction of rotation: must be fixed on construction site before manufacturing begins Material: galvanized steel sheet, remaining steel or other silver-painted Folding carton pre-separator highly flame retardant according to DIN53438K1/F1 and post-filter mat EU 4
