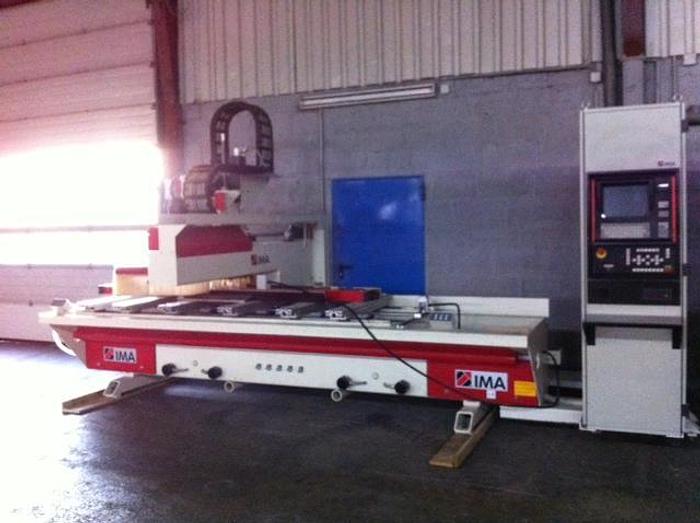

CNC machining center IMA Quadro Form 100/300/N
Sold
CNC machining center IMA Quadro Form 100/300/N
Location:North Rhine-Westphalia, Germany
Description
Can still be viewed and demonstrated in operation
- Dimensions overall
- Machine with boom
Specifications
| Manufacturer | IMA |
| Model | Quadro Form 100/300/N |
| Year | 1998 |
| Condition | Used |
| Stock Number | 0,00 |
| Product code | 3300094 |
| X-axis | 3000 mm |
| Axis speed-x | 70 m/min |
| Y-axis | 1000 mm |
| Axis speed-y | 60 m / min |
| Z-axis | 80 mm |
| Axis speed-z | 8 m/min |
| Part length, double working field | 1200 mm |
| Number of milling spindles | 1 pc. |
| Motor power milling spindle 1 | 5,0 kW |
| Toll connection milling spindle 1 | max. 16 |
| Spindles for boring | 4 pcs. |
| Spindles for boring vertical in x | 14 pcs. |
| Groove saw, pivoting | 90 degrees |
| Groover saw diameter | 150 mm |
| Groove saw, rotation speed | 6000 rpm |
| Number of consoles | 6 pcs. |
| Number of vacuum cups | 2 pieces. |
| Control | NUM 1062 W + IMA WOP 2.5 |
| Vacuum pump | 40 m³/h |
| Width | 6000 mm |
| Depth | 3500 mm |
| Height | 3200 mm |
| Diameter connecting piece | 200 mm |
| Color | 9002 gray white, 3001 signal red, 7032 pebble gray |
| Voltage | 400 / 50 |
