WAGNER TwinControl 35-70, 2K dosing system

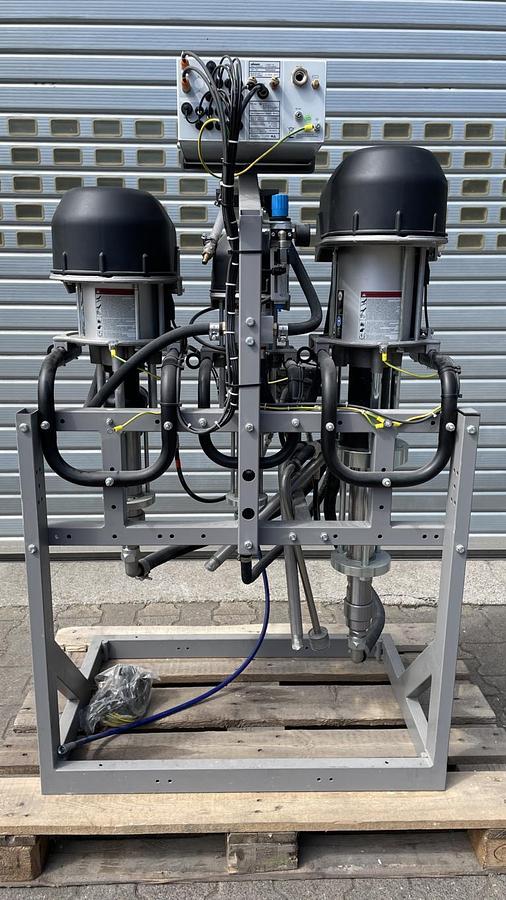

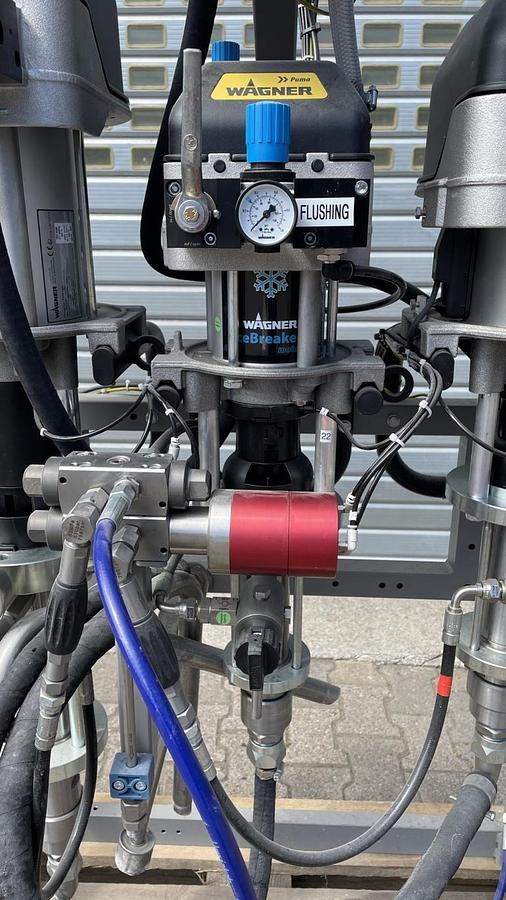

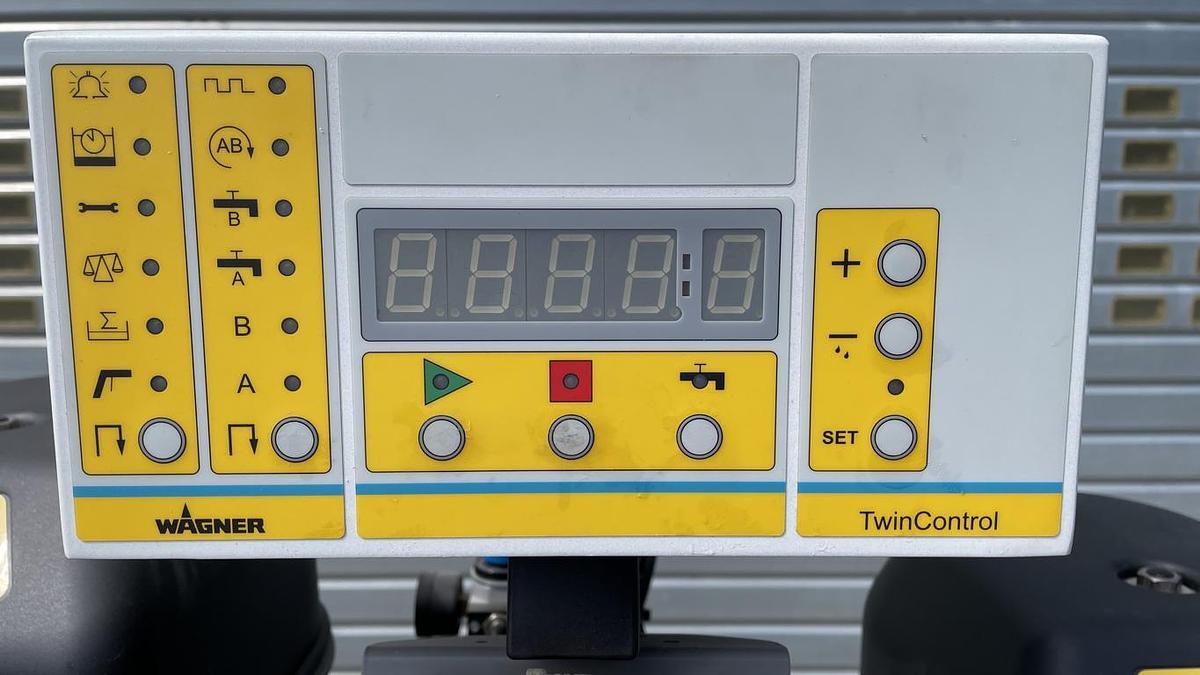

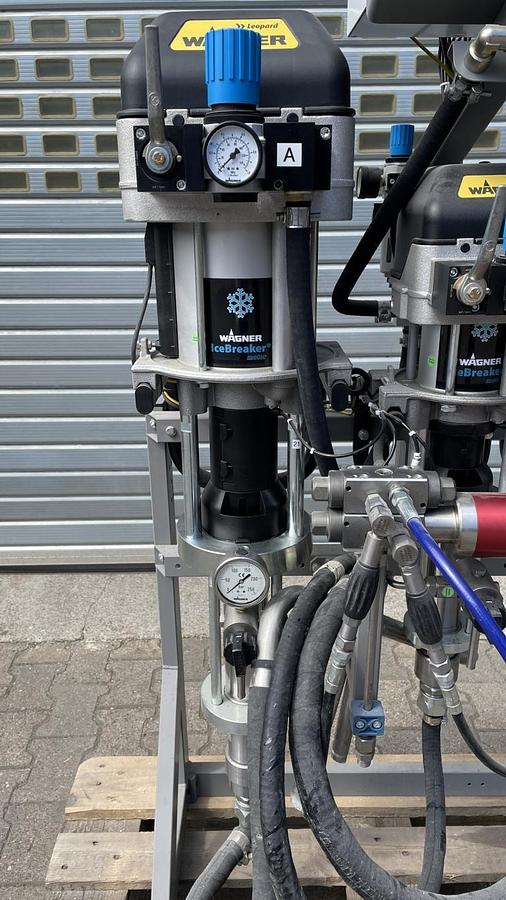

Industrial Solutions series Electronic 2K mixing system Mode of operation: The system works with a basecoat and hardener pump. Two delivery stroke meters (Magnetic Stroke Meter) measure the delivery rate and transmit the data to the electronic control unit. The correct quantities are dosed in the valve/mixer unit. A flushing agent pump is integrated in the system. Scope of delivery: - Pump, Leopard 35-150 PE/TG basecoat - Pump, Puma 35-70 PE/T hardener - Pump, rinsing pump Leopard 28-40 PE/TG - Electronic control unit - Dosing valve unit - Pump stand/frame - Manufacturer: Wagner - Type. TwinControl - Year of manufacture 2016 (Only used for test purposes) - Mixing ratio 0.1: 1 - 20:1 - Max. Working pressure 270 bar - Delivery rate at 1:1 mixing ratio 6.6 L/min. - Delivery rate with 4:1 mixing ratio 5.0 L/min. - Delivery rate at 10:1 mixing ratio 4.7 L/min. - Delivery rate at 20:1 mixing ratio 4.6 L/min. - Mixing accuracy +- 2 % - Continuous speed : 30 DH/min. (recommendation) - Mains input voltage (not Atex) 115 - 230 V - Input frequency (not Atex) 50 - 60 Hz - Air input pressure 5.0 - 8.0 bar, 73 - 116 PSI - Air connection input I-G 1/2
