Dry spray walls, air supply system RIPPERT RTS/RZL

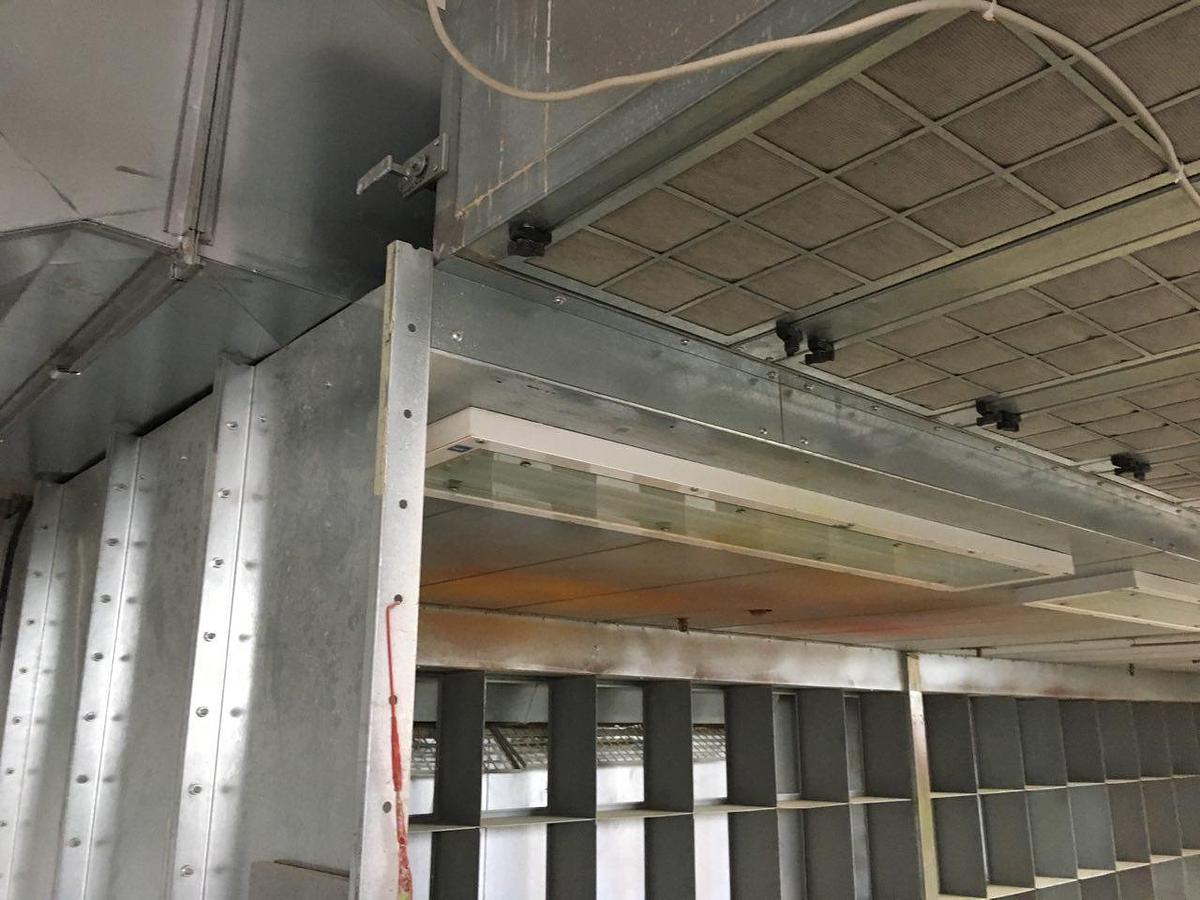

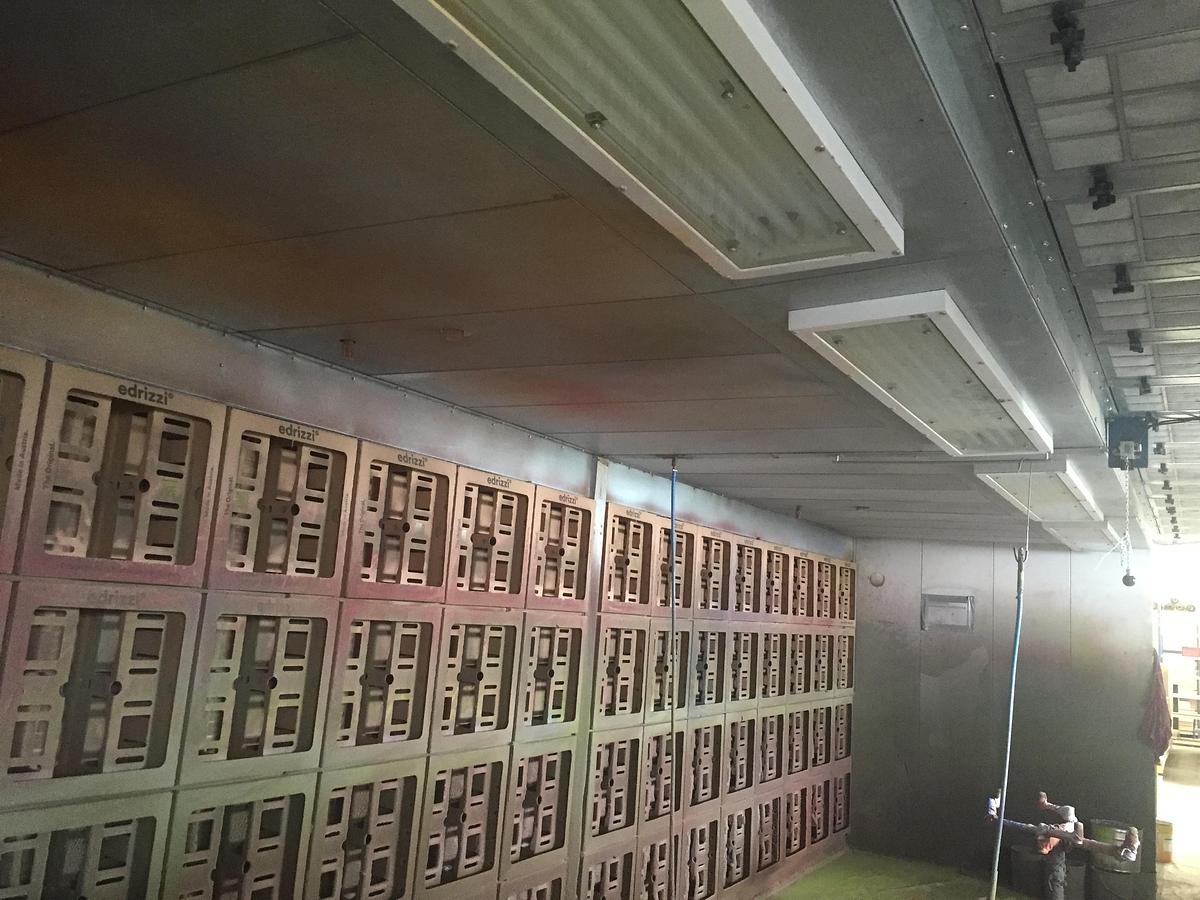

Dry spray wall/cabinet - Manufacturer Rippert - Type RTS 4000 - Year of construction 2005 - Width 2 x 4,000 mm (total usable width 8,000 mm) - individually switchable - Height approx. 2,000 mm, with side and ceiling sheets including lamps from above + fan + 450 mm - Depth approx. 2,000 mm, with side and ceiling sheets including lamps from above - Exhaust air capacity approx. 2 x 10,000 m³/h - Exhaust duct 2 x diameter 500 mm Filter exhaust cassette - Manufacturer Rippert - Year of construction 2005 - 2 pieces - Dimensions 2 x width 4000 x depth 2000 x 500 mm - zinc-plated Supply air system Rippert RZL 42 - Manufacturer Rippert - Year of construction 2005 - Type. RZL 42 - Motor power 11 kW - Length 3,140 mm - Width 1,600 mm - Height 1,400 mm - Duct connection Suction side 750x1600 mm, Pressure side 1000x1000 mm - Heating medium Hot water 90 / 70 - Volume flow 20,000 m³/h - Heat output 245 kW - Location, not stored - Voltage fluctuations max. +/- 5 % Control cabinet for the entire system
