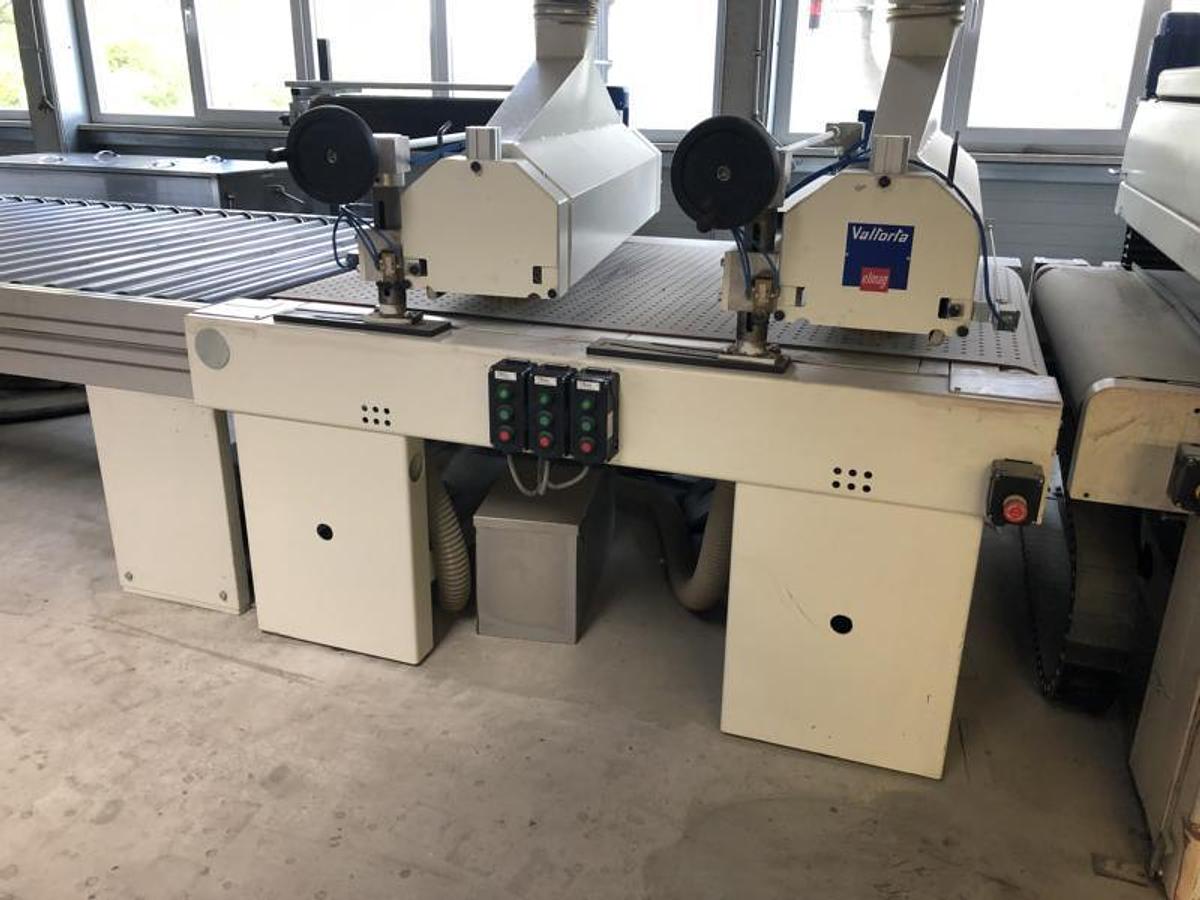

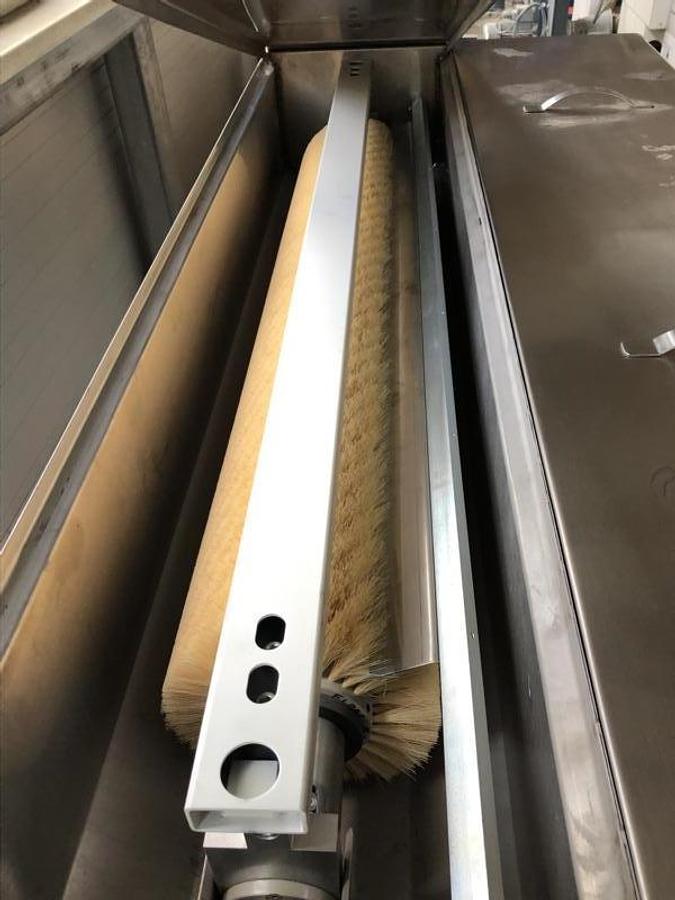

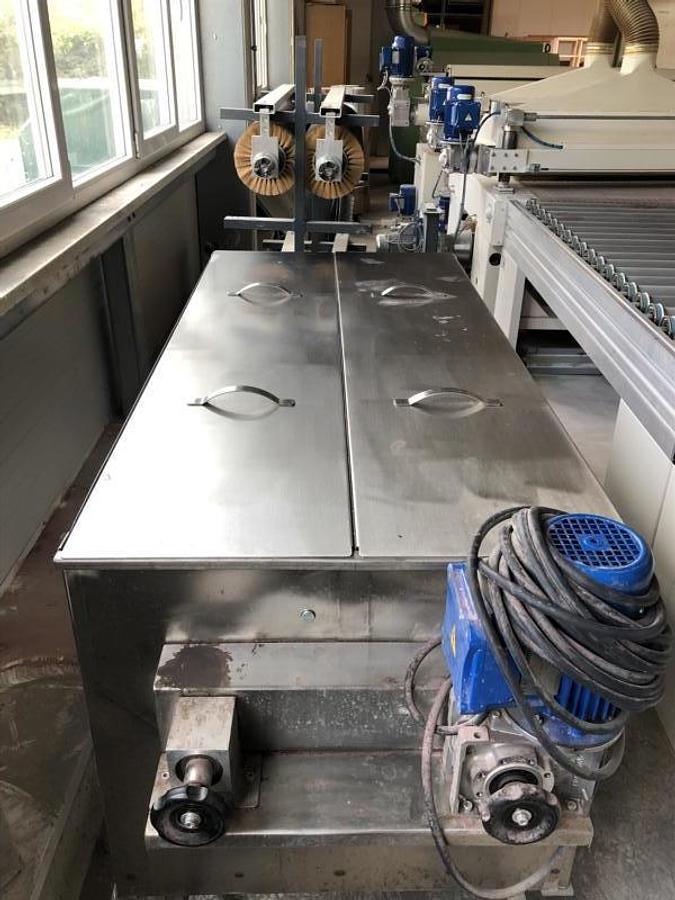

Distributor brushing machine Superfici Elmag model STW

with two brushes, vertical/tiltable, with cleaning trolley and 6 additional changeable brushes on a storage stand. CE-ATEX version Version with two brushes for even distribution of acids/etching, with the following equipment: - Independent height adjustment of the two brushes - Independent frequency-controlled brush speed - Machine frame in solid welded frame construction - High Grip belt conveyor with frequency control - Adjustment of the brush height by handwheel and mechanical digital display - Independent adjustment of the brush cross tilt - Manual cleaning knife on the brushes - Quick-change device for both brushes - Belt conveyor with vacuum system - Separate control cabinet Technical data: - Working width 1,300 mm - Machine length 2,500 mm - Working height 900 +/- 20 mm - Workpiece thickness 3 - 100 mm - Minimum workpiece length 300 mm - Brush diameter 250 mm - Hardness of the rubber coating of the application roller 50 Sh - Brush material natural bristle TAMPICO - Brush speed 100-300 min-1 - Feed rate 6-18 m/min (others on request) - Tube diameter of suction nozzle 2 x 180 mm - Required external suction capacity 2 x 2,300 m³/h - Required suction airspeed 25 m/s - Installed electrical total power approx. 4 kW - Color RAL 9002 gray - Operating side: left
