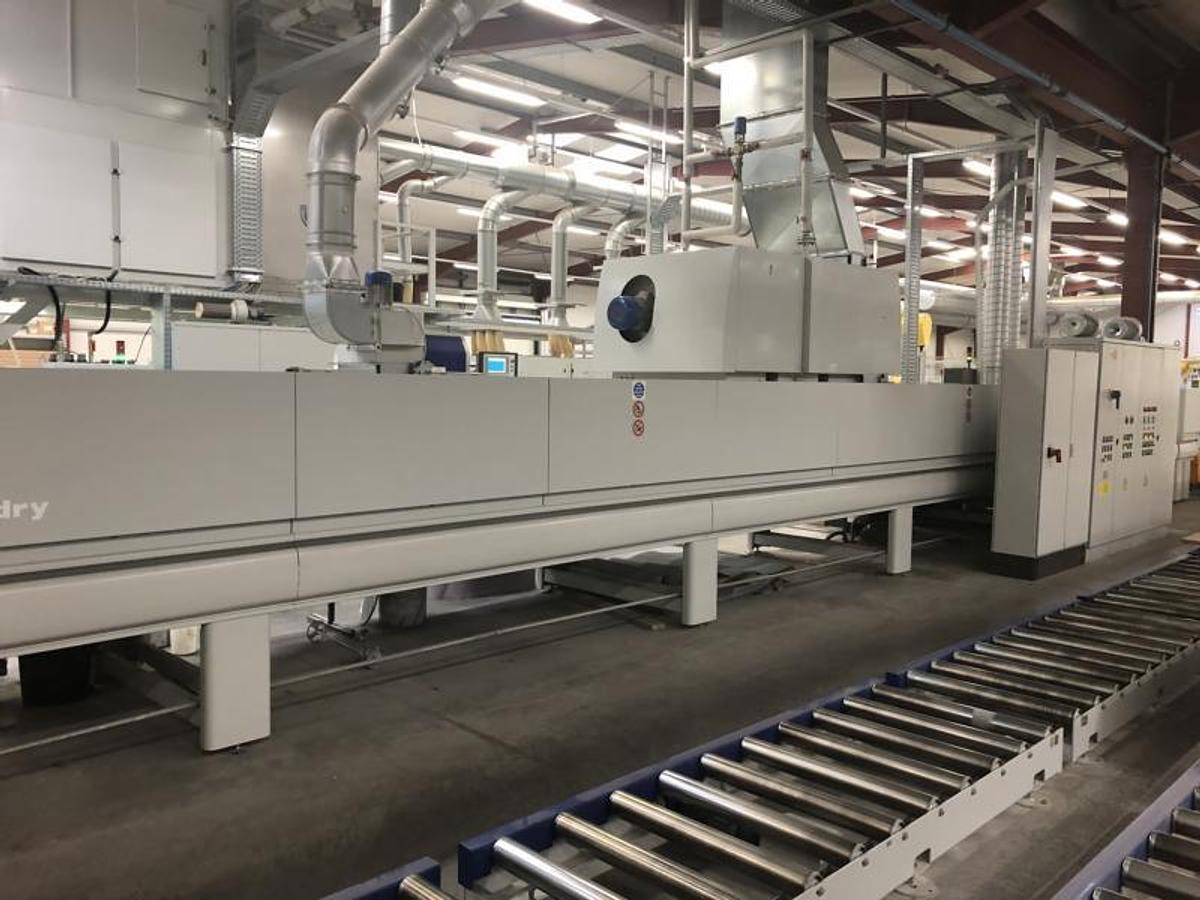

Cefla AQUA DRY Flash off / Air Jet / Dryer

HEATING AIR DRYER WITH INDUSTRIAL AIRFLOW Type FEV E3/7 Side and top plates made of 7 modular segments of 1500 mm. Supply and recirculation fan with intake air from outside with filter degree G4. Heating coil with automatic temperature control. Exhaust fan with adjustable throughput. Ventilation with air flow opposite to the direction of rotation Designed for the installation of IR lamps. Total length 10500 mm VS - Supply and recirculation fan: throughput 4000 m3/h Exhaust fan Installed electrical power 3.7 kW Installed heating capacity 76400 Kcal/h Outwardly directed solvent-containing air 4000 m3/h Heating medium: hot water. Electrical system. Connection to electrical control cabinet. Construction with motors in Exg.- ATEX Cat. 3G. Additional price for an IRCK lamp series Installed electrical power 6 kW Control power for each lamp. Lamp shutter. Lamp shutter control. Freeze protection for 1 heating coil, with probe and automatic control of the shutter. Control for frost shutter. Autonomous electrical control cabinet. NOZZLE DRYER Type FEV EU 2/8 Side and top plates made of 8 modular segments of 1500 mm. Supply and recirculation fan with intake air from outside with filter degree G4. Heating coil with automatic temperature control. Exhaust fan with adjustable throughput. Ventilation using high-velocity air flow. Designed for the installation of IR lamps. Total length 12000 mm VS - Supply and recirculation fan: throughput 9000 m3/h Installed electrical power 8.05 kW Installed heating capacity 100000 Kcal/h Outwardly directed solvent-containing air 2000 m3/h Heating medium: hot water. Electrical system. Connection to the electrical control cabinet. Construction with motors in Exg.- ATEX Cat. 3G. Freeze protection for 1 heating coil, with probe and automatic control of the shutter. Control for frost shutter. STICK CONVEYORS Type TT 23396 Stick conveyor with double chain, steel guides and chrome rods, diameter 25 mm. Feed through inverter-controlled reduction gearbox. Length 23396 mm Maximum speed 14 m/min - Installed electrical power P= 1.50 kW Control from the dryer’s electrical control cabinet. Electrical system. Construction with motor in Ex-g 1.50 kW. - ATEX Cat. 3G
