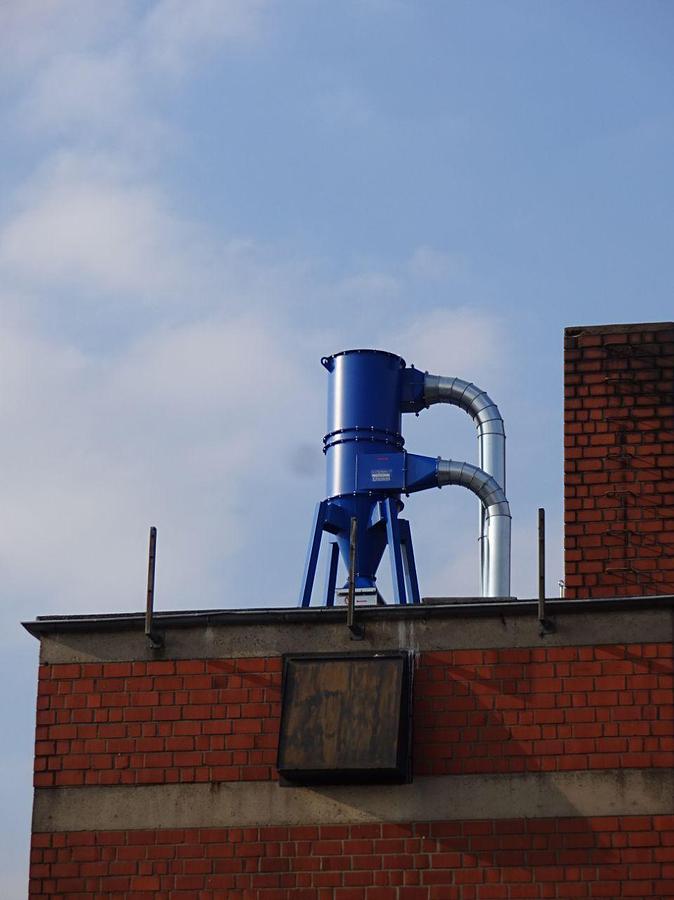

Cyclone Höcker Polytechnik max. 6,000 m³/h

Particularly space-saving cyclone separator for wood chips and comparable coarse materials. The main design features are - flow-optimized design for high energy efficiency - low pressure loss compared to conventional cyclone separators - very good separation efficiency of particles >0.5mm - designed for separating wood shavings/sawdust, wood chips, etc. - not suitable for streaky or woolly materials. Advantages: - made from 2.00 mm sheet steel - primed and painted finish (RAL 5005), - supplied ready for installation, including * Cyclone supports, * Inlet spigot, * air outlet spigot and * material outlet spigot in the conical part. Capacity : 4000 - 6000 m3/h Resistance, total : 200 - 400 Pa Separation capacity (depending on material) : 15 m3/h max. Inlet spigot : 300 mm diam. Outlet spigot : 350 mm diam. Casing diameter : 850 mm Total height, approx. : 3680 mm Base area, approx. : 1420 x 1420 mm Material outlet : 250 mm diam.
