3D UV dryer up to 150 W/cm

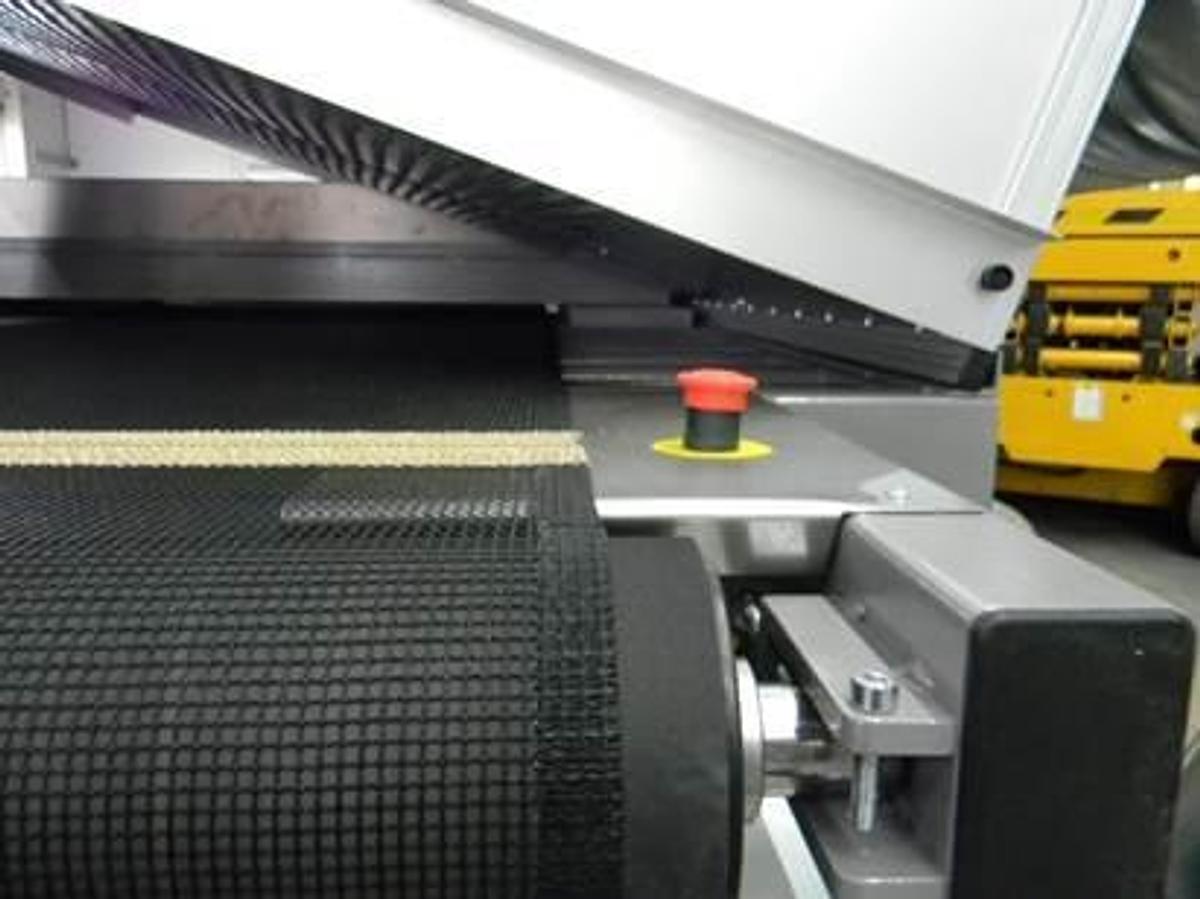

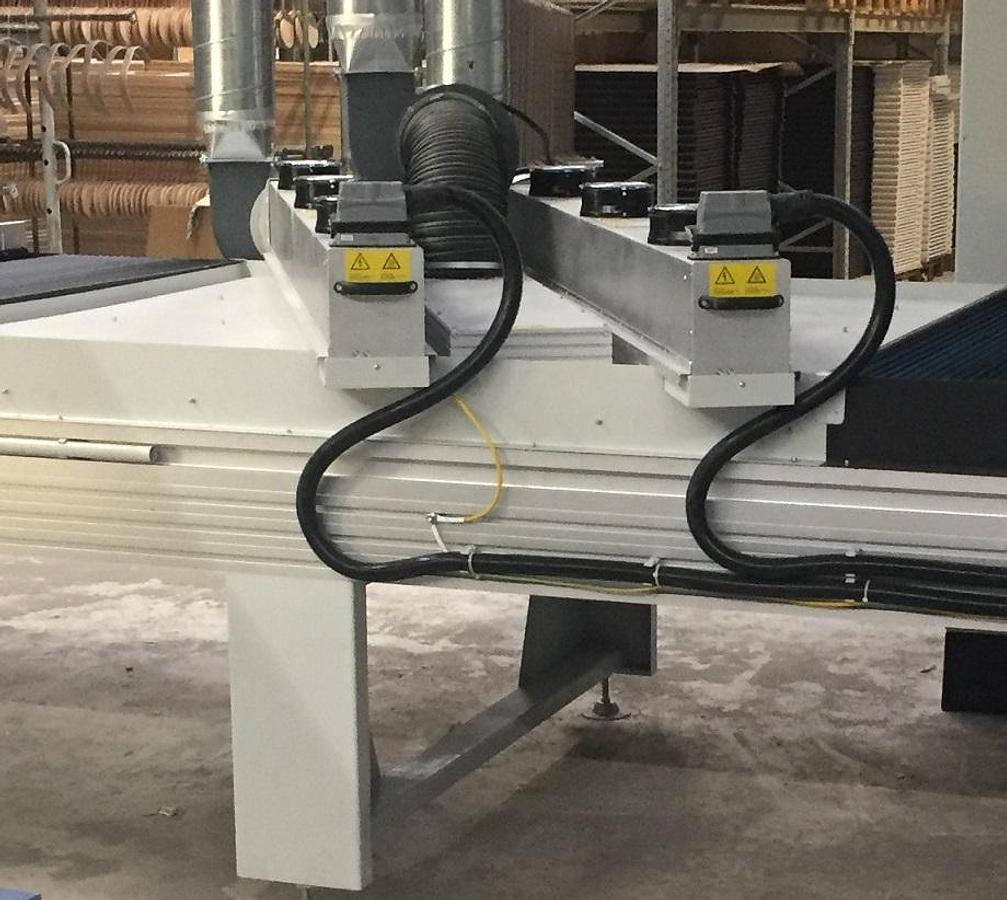

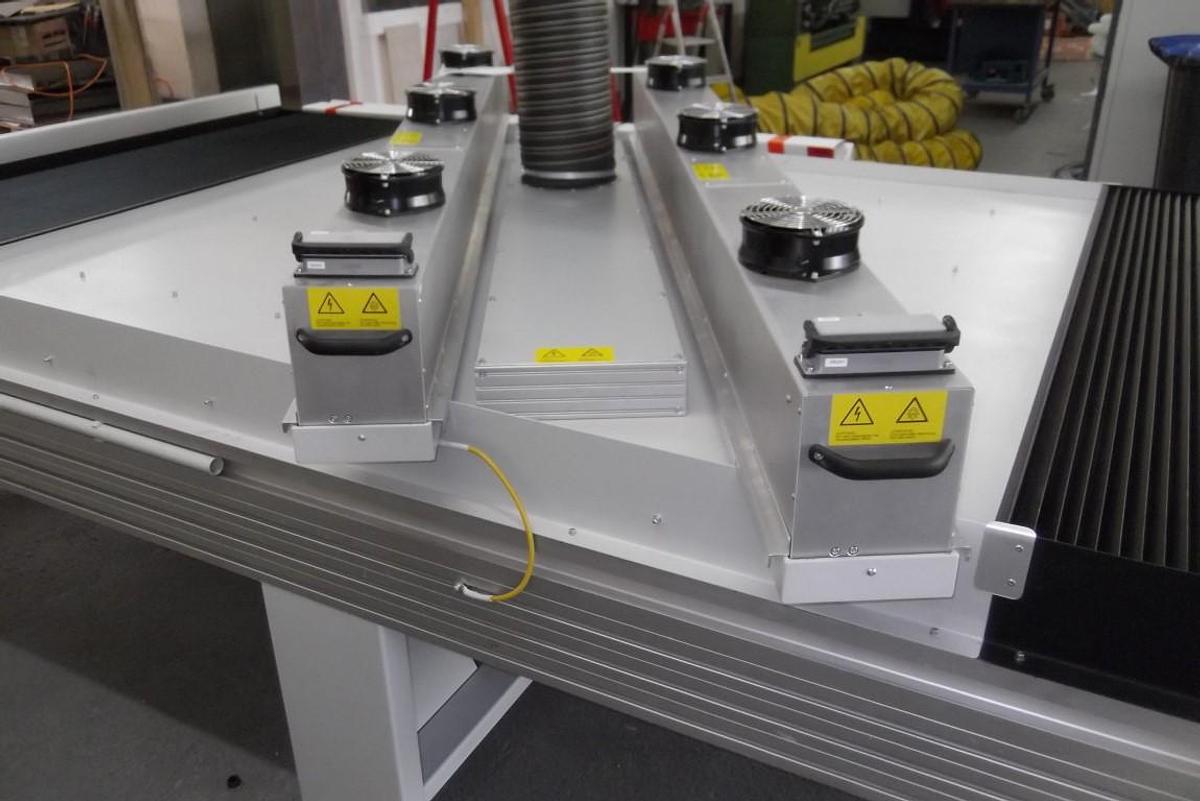

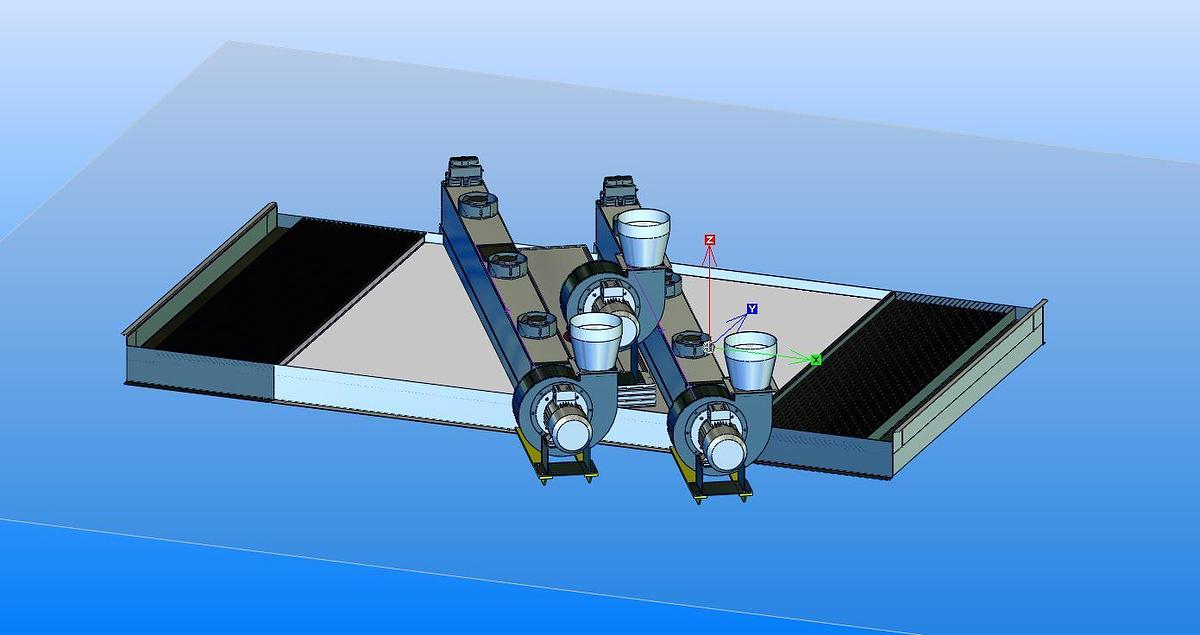

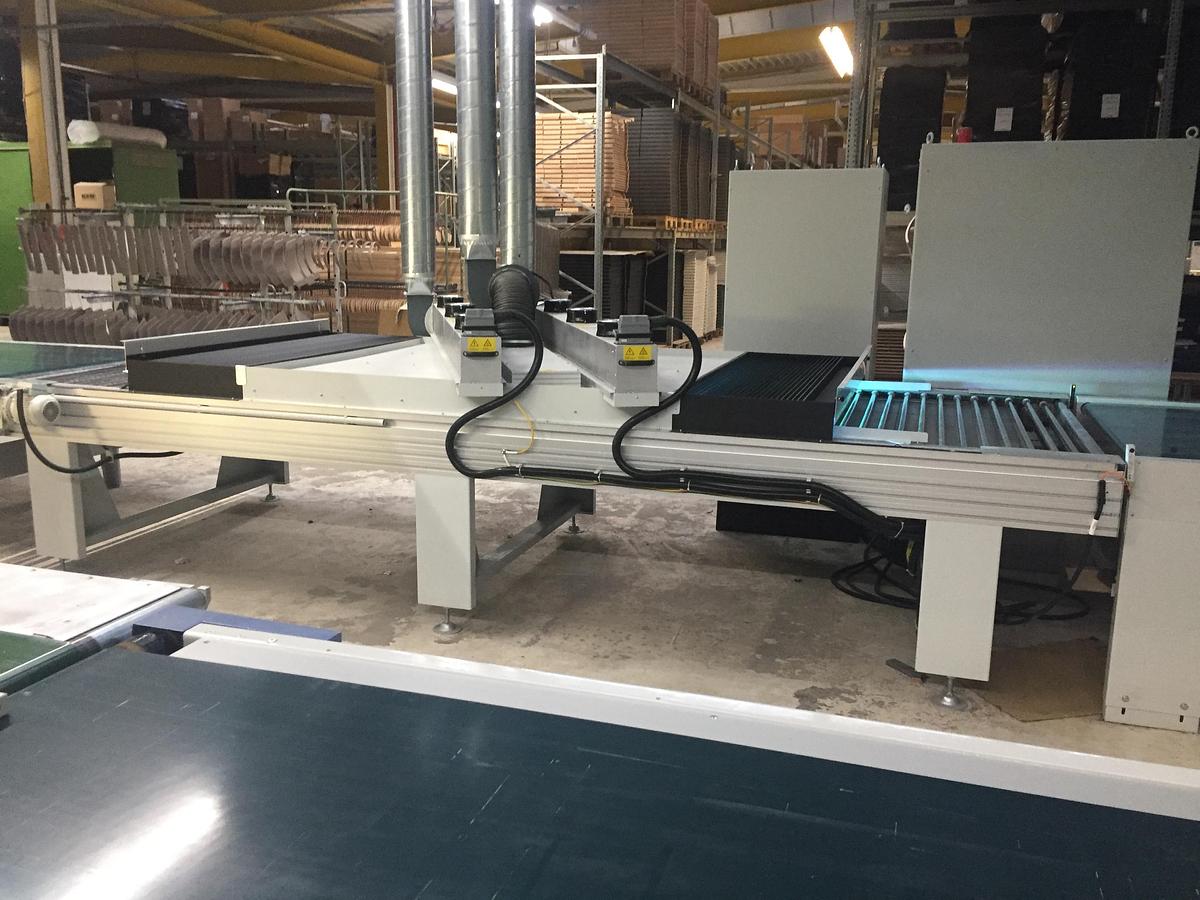

Only 2 instead of 4 radiation modules! The radiation modules are installed slanted, but straight (not as usually swiveled). due to this it is possible to realize 3D drying with only one radiation module. The special reflector design and geometry ensure that the radiation is fully captured and reaches the substrate. In the Multifocus reflector geometry, several focus lines are projected in space between the UV module and the substrate / workpiece. Thus differently high parts can be irradiated safely without changing the height of the UV module. This means that in the first radiation module a gallium lamp could be mounted and in the second radiation module a mercury lamp. Other combinations are also possible. Technical data: - Radiation systems: 2 pieces - Working width: 1,300 mm - UV lamp length: 1,500 mm - UV radiation output: max. 150 Watt/cm - UV power control: stepless from 30% to 100% - Radiation spectrum: Mercury-vapor mid-pressure lamp, 1 x Ga, 1 x Hg - Add-on reflector: Reflector system for mounting beneath a conveyor - Reflector cooling: Controlled reflector cooling with intake and exhaust air - Reflector design: Environ –Multireflection - Backlight/shadow: Environ–additional reflector with cooling function - Master frame: Mounting of the UV modules, alignment for edge irradiation - UV radiation protection: Integrated in master frame - Energy-saving function: Automatic standby switch with power reduction to about 10%. - Transport system with mesh belt, PTFE-coated (optional, bar conveyor possible) - Total length of transport system: 3.0 m - Conveyor height: 900 mm +/- 25 mm - Throughput height/parts height: approx. 100 mm - Electrical connection: 400V~, 50 Hz, 3-phase +N +PE Equipment: - UV Power Control, microprocessor-controlled power regulation of the UV lamps (True RMS). - Stepless UV power regulation (30-100%), modern processor control and regulation of UV radiation power for a precisely reproducible UV irradiation (quality assurance). - Environ –Multireflection - Super Cure- Quality UV lamps with longer service life. - Sliding technology for opening and closing the module - Controlled reflector cooling, PWM-controlled heat extraction with additional cooling air supply. - Automatic material recognition (with standby function at about 10% UV power). - Controller Processor Modicon with color touch display. - Frequency converter with CANopen connection to the PLC.
