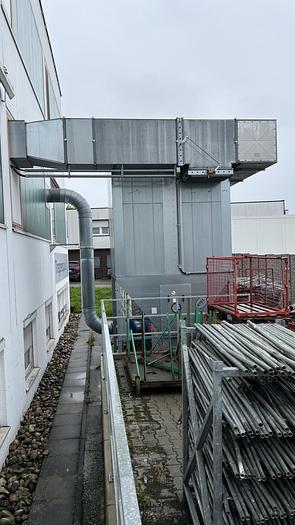

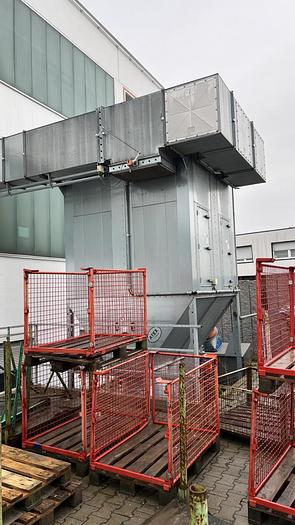

Nedermann stationary extraction unit, 152m², Ex. version

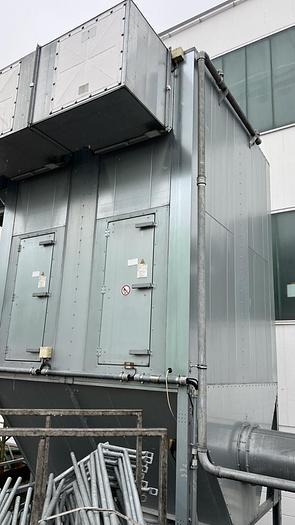

for assembly on the bunker intended. Consisting of: Year of manufacture 2013 Overpressure filter Type 1440 for outdoor installation. The essential design features are: - galvanized, self-supporting sheet metal construction - filter sleeves, internally loaded, with upper retaining discs - weather protection enclosure of the filter part with revision door(s) and exhaust outlet - expansion chamber, for preliminary separation, 1000 mm high Advantages: - high operating safety - large filter area with little space requirement Bag filter: - Type 1440X800 - Number of filters: 100 pcs - Filter dimensions: 180x2700 mm - Filter area: 152 m² - suitable for return air - connection for fans D450 mm (further possible) - with check valve Trox - with return air ducts Installation dimensions: - Width: 2,400 mm - Depth: 2,400 mm - Height: approx. 5,220 mm Exhaust fan: - Volumetric flow approx. 8,000 m³/h - Pressure 3514 Pa - Connection diameter: D 450 mm - Motor power: 15 kW - Pressure 3514 Pa - Speed 2940 U/min. - 400V/50Hz
