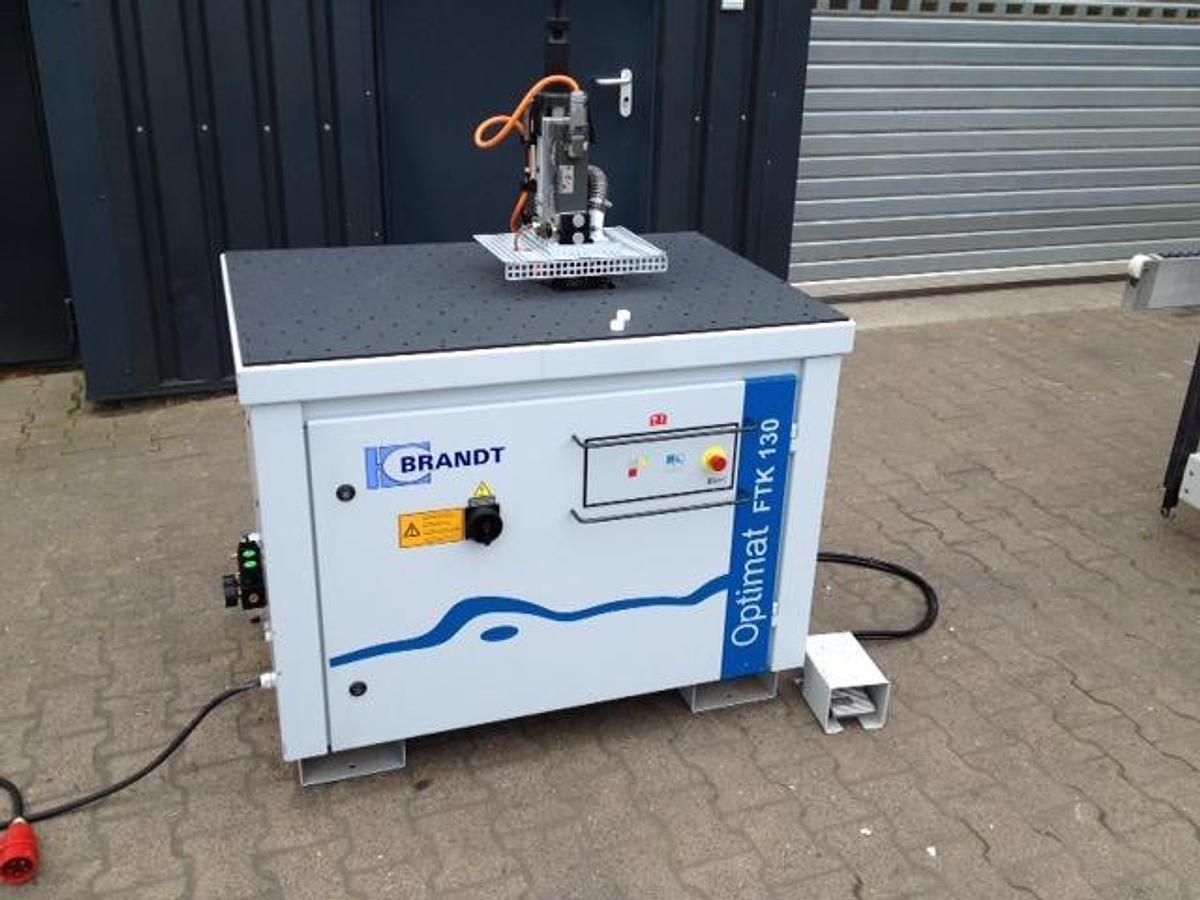

Brandt Optimat FTK 130 edge milling machine

technical data: - Year of manufacture 2006 - Workpiece thickness (radius) ~ 16 - 55 mm - Workpiece thickness (chamfer) ~ 12 - 55 mm - Workpiece width min. approx. 30 mm - Inner radius min. approx. 35 mm (depends on edge radius and workpiece contour) - Edge thickness max. ~ 3 mm - Milling tool 2 x WPL-radius cutter r = 3 mm - Diameter 67 x 21 x 16 mm, Z = 4 - Milling motors 2 x 0.35 kW, 11800 U/min. - Electricity 400 V - 3 Ph. - 50 Hz - Connection power 0.7 kW - Pneumatic connection 6 bar - Extraction 1 x diameter 80 mm - Space requirement ~ 1200 x 800 mm - Working height 907 mm - Weight approx. 320 kg
